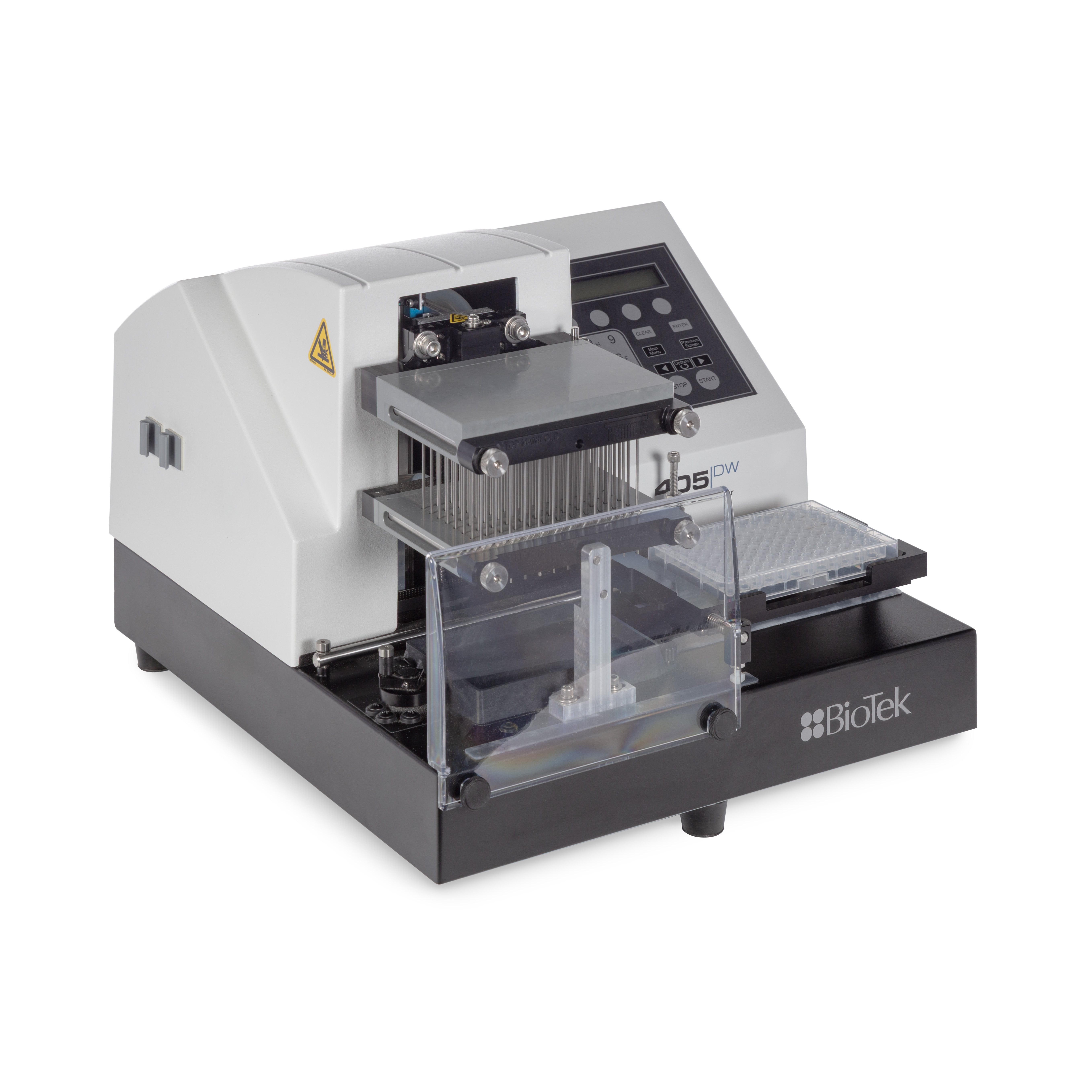

The BioTek ELx405 Select is the first deep well plate washer that aspirates and dispenses into 96- and 384-well deep well and standard height microplates. The ELx405 Select is available in several configurations to address a wide variety of plate washing applications, including ELISA and cell-based assays. Maintenance is easy with the available patented Ultrasonic Advantage that automates and cleans manifold tubes to remove built-up salt and protein.
Washes 96- and 384-well deep well and standard height plates.
- The ELx405 is the premier microplate washer accommodating deep well blocks and standard height microplates, in 96- and 384-well format, without requiring specialized manifolds.
Ideal for cell culture, plasmid DNA purification and much more
- Wash processes used in cell culture and plasmid DNA preparation are automated with the ELx405 – there’s no need for specialized instrumentation. ELx405 Select can also process magnetic and polystyrene bead protocols, making it a versatile plate washer for many laboratories.
Applications:
The ELx405 Select is designed for applications that typically require washing deep well blocks, such as serum and plasma prep workflows. It goes beyond these specialized applications, though. The ELx405 Select easily handles a broad range of applications in standard 96- and 384-well plates, including sensitive cell-based assays.
- Plasmid DNA purification
- Serum/plasma preparation
- ELISA
- Cell culture
- Bead washing
Specifications:
microplate types96- and 384-well
Low profile and standard height
Deep well plates up to 50 mmOnboard softwareCreate, edit or run multiple protocols.Software (computer control)LHC2 pc software
LHC2 Secure for 21 CFR Part 11 compliance (option)
Sila Compliant driver (option)ShakingProgrammable up to 60 minutes
Slow, medium, fast or variableSoakingProgrammable up to 60 minutesAutomationBioStack (for standard plate heights only) and 3rd party automation compatible (deep well and standard plates)
Bench Cell Microplate Handler compatible
WASHING
Manifold types96-tube Dual-Action manifold for 96- & 384-well washingVolume range50 - 3000 µL/well, in 1 µL increments.Wash cycles1 - 10Buffer/reagent selectionAuto switching module for up to 4 buffers (option)Supply bottle4 L or 10 L (optional)Dispense precision≤3% CV: 300 µL/well (96-well washing)Residual volume<2 µL/well (standard & deep well 96-well plates)Wash speed96-wells, 300 µL/well, 3 cycles: <30 seconds
384-wells,100 µL/well, 3 cycles: <80 secondsFlow ratesHigh flow to low flow
Optimized rates for cell assaysSterilizationChemical
